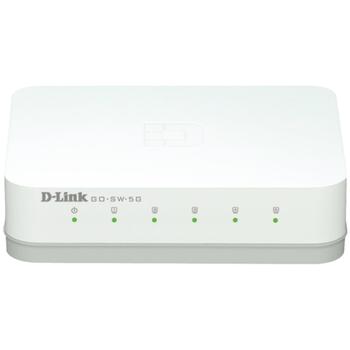

D-LINK GO-SW-5G GIGABIT EASY DESKTOP SWITCH

SPECIFICATIONS
Switching Fabric
• 10Gbps

Standards
• IEEE 802.3 10BASE-T Ethernet (twisted-pair copper)
• IEEE 802.3u 100BASE-TX Fast Ethernet (twisted-pair copper)
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet (twistedpair copper)
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x Flow Control
• IEEE 802.3az Energy-Efficient Ethernet (EEE)

Protocol
• CSMA/CD

Data Transfer Rates
• Ethernet:
• 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet:
• 100 Mbps (half duplex), 200 Mbps (full duplex)
• Gigabit Ethernet:
• 2000 Mbps (full duplex)

Topology
• Star

Network Cables
• 10BASE-T:
• UTP CAT 3, 4, 5/5e (100 m max.)
• EIA/TIA-586 100-ohm STP (100 m max.)
• 100BASE-TX, 1000BASE-T:
• UTP CAT 5/5e (100 m max.)
• EIA/TIA-568 100-ohm STP (100 m max.)

Media Interface Exchange
• Auto MDI/MDIX adjustment for all ports

LED Indicators
• Per port: Link/Activity/Speed
• Per device: Power

Transmission Method
• Store-and-forward

MAC Address Table
• 2K

MAC Address Learning
• Automatic update

Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port
• Gigabit Ethernet: 1,488,000 pps per port

RAM Buffer
• 128KB per device

Jumbo Frames
• 9,216 Bytes

DC Input
• External 5 V/1 A Level "V" Power Adapter

Power Consumption
• DC input: 1.67 watts
• AC input: 2.7 watts

MTBF
• 815,700 hours

Operating Temperature
• 0 to 40 °C

Storage Temperature
• -10 to 70 °C

Operating Humidity
• 10% to 90% RH non-condensing

Storage Humidity
• 5% to 90% RH non-condensing

Dimensions
• 97 x 79 x 28 mm

Weight
• 105 grams

Certifications
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL/UL
• CCC
• Anatel
• LVD
