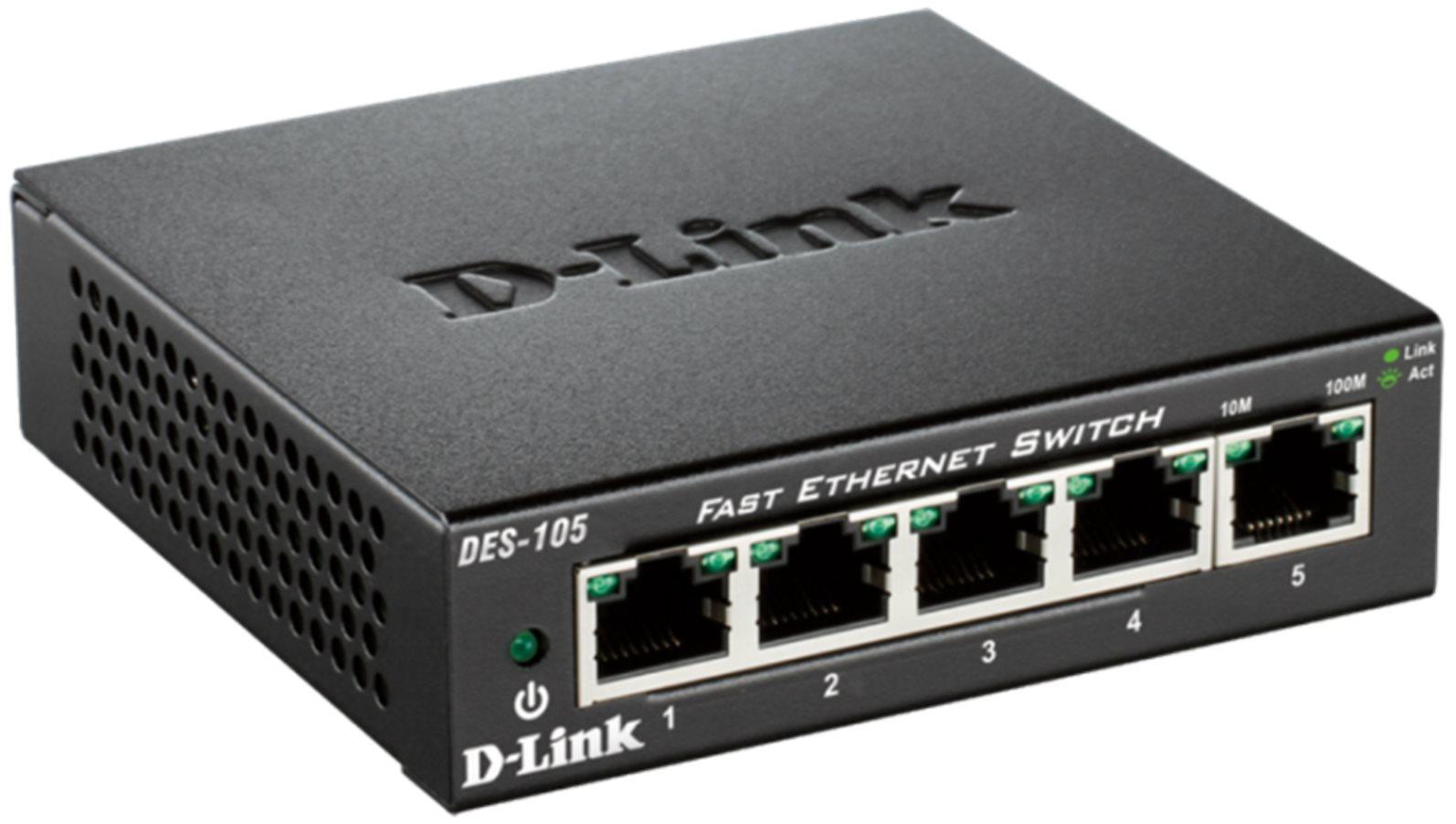

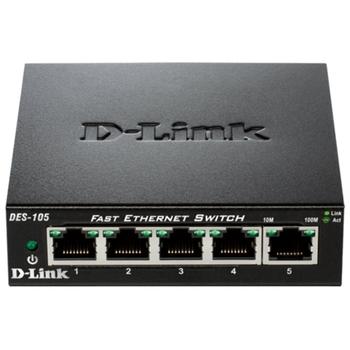

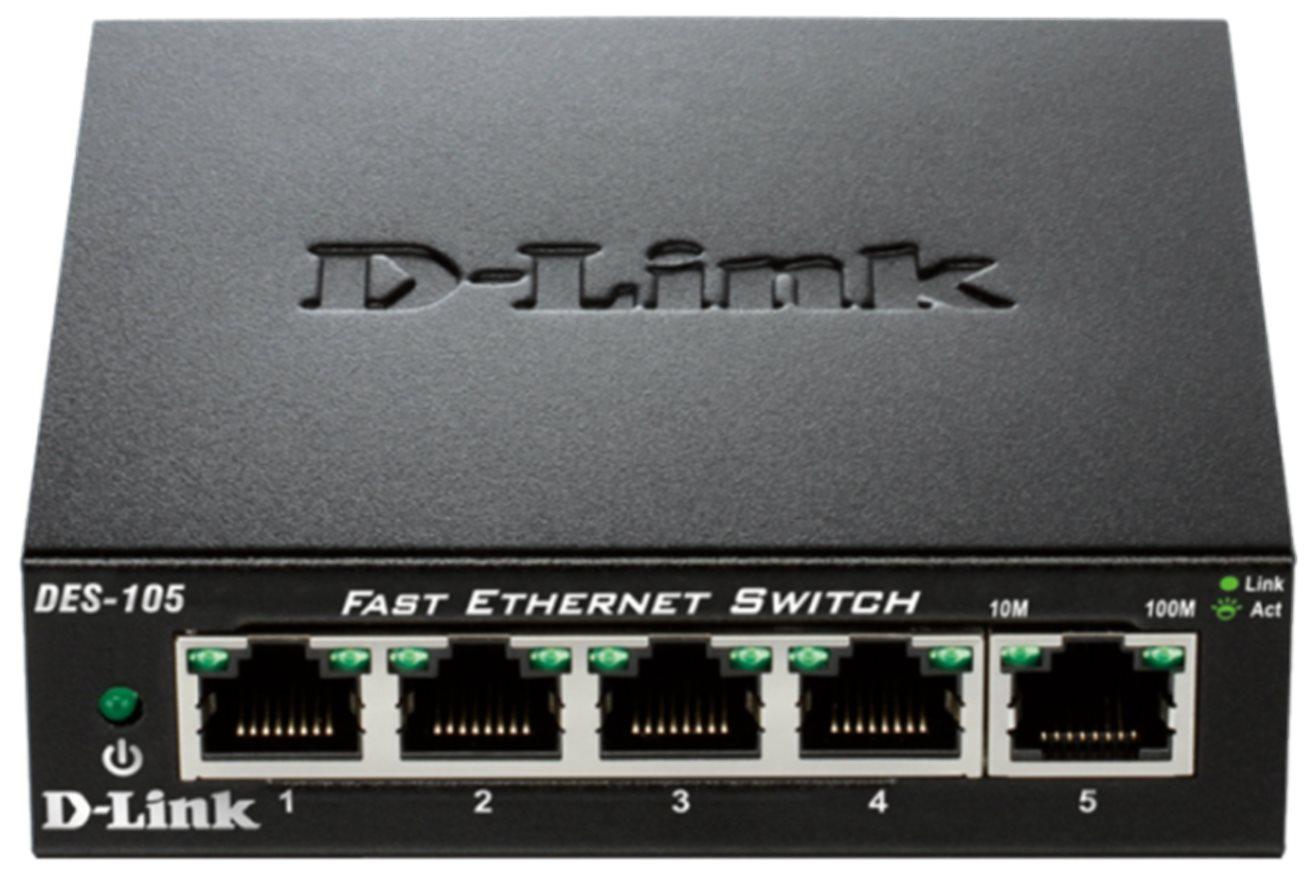

D-LINK DES-105

SPECIFICATIONS
Standards
• IEEE 802.3 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• ANSI/IEEE 802.3 NWay auto-negotiation
• IEEE 802.3x flow control
• IEEE 802.3az Energy Efficient Ethernet (EEE)

Layer2 Features
• MAC address table: 2K
• Auto MDI/MDIX crossover for all ports
• Store-and-forward switching scheme
• Full/half-duplex for Ethernet/Fast Ethernet speeds
• Jumbo Frames: 2047 Bytes

Switching fabric
• 1.0 Gbps

Data Transfer Rates
• Ethernet: 10 Mbps (half duplex), 20 Mbps (full duplex)
• Fast Ethernet: 100 Mbps (half duplex), 200 Mbps (full duplex)

Packet Filtering/Forwarding Rates
• Ethernet: 14,880 pps per port
• Fast Ethernet: 148,800 pps per port

RAM Buffer
• 384 KB

LED Indicators
• Per port: Link/Activity
• Per device: Power

Quality of Service (QoS)
• Supports 802.1p QoS
• 2 Queues, Strict Mode

Green features
• Energy Efficient Ethernet (EEE) standard
• RoHS compliant

Power

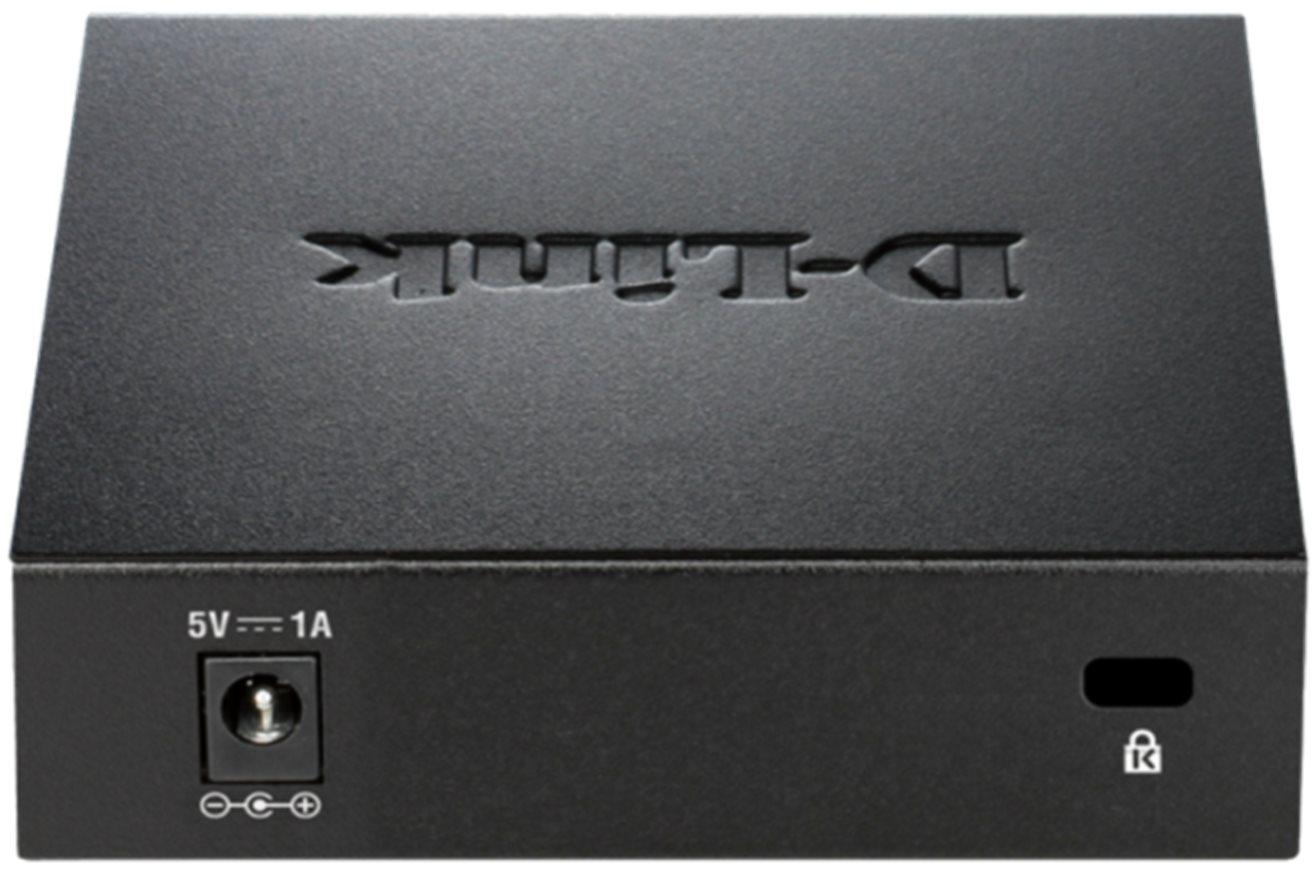

• External 5 V/1 A Level “V” Power Adapter

Power Consumption (DC input)
• Standby: 0.35 W.
• Maximum: 1.9 W.

MTBF
• 495,709 hours

Temperature
• Operating: 0 to 50 °C
• Storage: -10 to 70 °C

Humidity
• Operating: 10% to 90% RH non-condensing
• Storage: 5% to 90% RH non-condensing

Dimensions (W x D x H)
• 100 x 98 x 28 mm

Certifications
• FCC Class B
• ICES-003 Class B
• CE Class B
• C-Tick Class B
• VCCI Class B
• cUL
• CB
